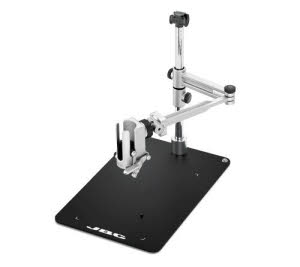

JBC RWS-D Rework Arm for PHS-2KB

For Only
Dimensions: 386 x 270 x 400 mm
Especially designed for working with the PHS IR Preheater, it allows adjustment for different heights and positions depending on the operator’s needs. This means it can cover the whole working area. The arm can be placed in different positions, affording great flexibility when working on rework projects. Vertical Movement Thanks to the multiple arm joints the height of the arm can be adjusted to suit all components whatever their size. Articulated arm
It provides full access to the whole work area by fixing the position of the arm joints using the tightening knobs. Rotating clamp This holds the hose away from the work area to keep it clear of obstacles. Specifications:

Weight 5.000 kg
Size 386,5 x 270 x 400 mm

Package weight 6.000 kg
Package dimensions 595 x 520 x 180 mm
Add to cart
special online discount!

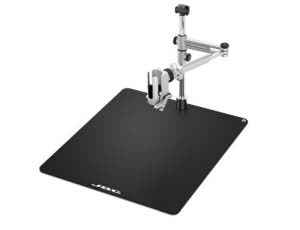

JBC RWB-B Rework Arm for PHB-2KA

For Only
Dimensions: 386 x 480 x 550 mm
It supports the Hot Air heater and leaves the operator free. Especially designed for working with the PHB Convection Preheater. Once the arm has been fixed into position and the work profile has been set (temperature, air flow and time) in the Hot Air stations, the arm means you can fix the tool in place for when you need to repeat the operation for the same batch of PCBs.Vertical Movement
Thanks to the multiple arm joints the height of the arm can be adjusted to suit all components whatever their size.Articulated arm
It provides full access to the whole work area by fixing the position of the arm joints using the tightening knobs.Rotating clampThis holds the hose away from the work area to keep it clear of obstacles.Specifications:Weight 12.500 kg Size 386,5 x 480 x 550 mm
Package weight 15.000 kg
Package dimensions 595 x 520 x 180 mm

Add to cart
special online discount!

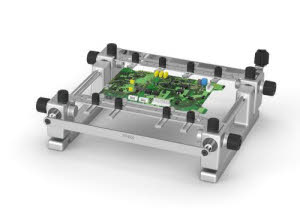

JBC PHS-SA Small PCB Support

For Only

This support is perfectly adapted to any type of PCB by means of its many adjustable parts.
It allows you to properly position PCBs of the same batch so as to always heat the same area.
This means you save time and optimize workflow.
The PHS-SA incorporates several slots for a total alignment to the PHS-B IR Preheater system.
The user can modify the height of the support (75 mm or 95 mm) according to the working needs.
It is also possible to use the 4 black rubber caps for reworking large PCBs.

Weight 2 kg
Dimensions 267 x 259 x 75 mm
High position 267 x 259 x 95 mm

Add to cart
special online discount!

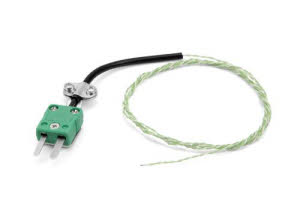

JBC PH218 Thermocouple Type K

For Only

The type K Thermocouple works with the PH Infrared Preheater.

It allows you to monitor and control the temperature on a specific point of the PCB.

Add to cart
special online discount!

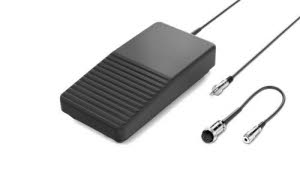

JBC P-005 Pedal

For Only

Can be used for operating JBC PH-2B Preheater

Add to cart
special online discount!
