The DME Control Unit manages up to 4 tools simultaneously and is fully compatible with 10 different JBC tools.
It provides the best soldering quality thanks to JBC Most Efficient Soldering System and additionally Sleep & Hibernation Modes help to extend life of tips.
It features all the Excellence range benefits such as station customization, full control of soldering processes and remote work management.
DMP works simultaneously with T210 Precision Purpose Handle, T245 General Purpose Handle, AM120 Adjustable Micro Tweezers and DR560 Desoldering Iron.

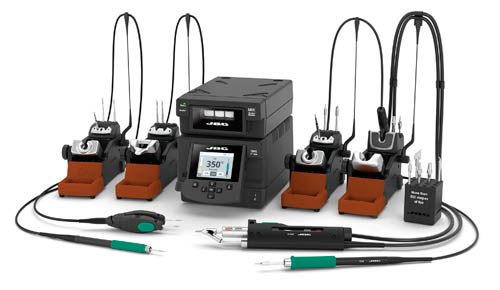

Product Composition;
1 x DME 4-Tool Control Unit
1 x MSE Electric Desoldering Module DDU and DMU
1 x AM120 Adjustable Micro Tweezers
1 x T210 Precision Handle
1 x T245 General Purpose Handle
1 x DR560 Desoldering Iron
2 x ADS Stand for T210 and T245 Handles
1 x AMS Stand for AM120 and PA120 Tweezers
1 x DRS Stand for DR560 Desoldering Iron
1 x P-405 Pedal for Nano Rework Station
1 x SCH Cartridge Holder
Specifications;
- Selectable Temperature 90 to 450 ºC / 190 to 840 ºF
- Vacuum (at 6 bar) 75% / 570 mmHg / 22.4 inHg
- Flow rate (at 6 bar) 9 SLPM
- Connectivity; USB-B (rear) Software PC / Traceability USB-A (front)
- Firmware update. Soldering Graphics / Profiles management. Dino-Lite USB microscope connection; compatible models: AM2011 and AM2111.
- Robot RS-232 remote control or Smart Fume Extractor connection LAN Remote control / Traceability Equipotential bonding
- Optional connection to EPA ESD/EOS ESD safe
- Tip to ground resistance <2 ohms
- Tip to ground voltage <2 mV
- RMS Power Supply; Peak power 160 W per tool – 23.5 V
- Ambient operating temp. 10 to 50 ºC / 50 to 120 ºF
- Dimensions and weight; Control Unit 148 x 120 x 232 mm / 4.57 kg
