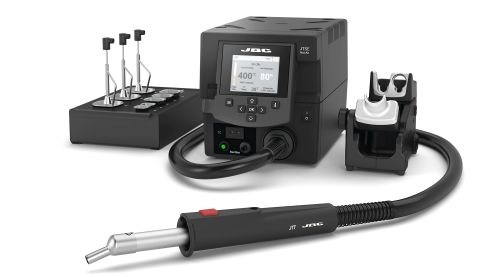

This is a high powered hot air station for repairing all types of SMDs quickly and safely, including the biggest QFPs and PLCCs.
Profiles mode
It features along with the manual mode a powerful functionality of profiles to perform rework tasks with the maximum precision.You can control temperature values and air flow rate by creating up to 25 profiles.
Control thermocouple
Read the temperature at a specific point on the PCB with the control thermocouple. It helps protect the components or a specific area on the PCB and provides greater precision when regulating the temperature.
Auto-stop function
A safety measure which ensures the heat is automatically cut off when the tool is in the JT-SD stand.
Specifications
Weight 4.927 kg
Dimensions 148 x 184 x 140mm
Voltage (AC) 230V
Input Fuse 4A (230V)
Nominal Power 700 W
Temperature selection 150-450 ºC
Cool mode: temp. Off
Ambient operating temp. 10-40 ºC
Air Flow Regulation 5-50 LPM
Vacuum 30% / 228 mmHg
Rated Current 3A (230V)
Communication connectors USB-B
Pedal connection P-005 Pedal
ESD Safe
